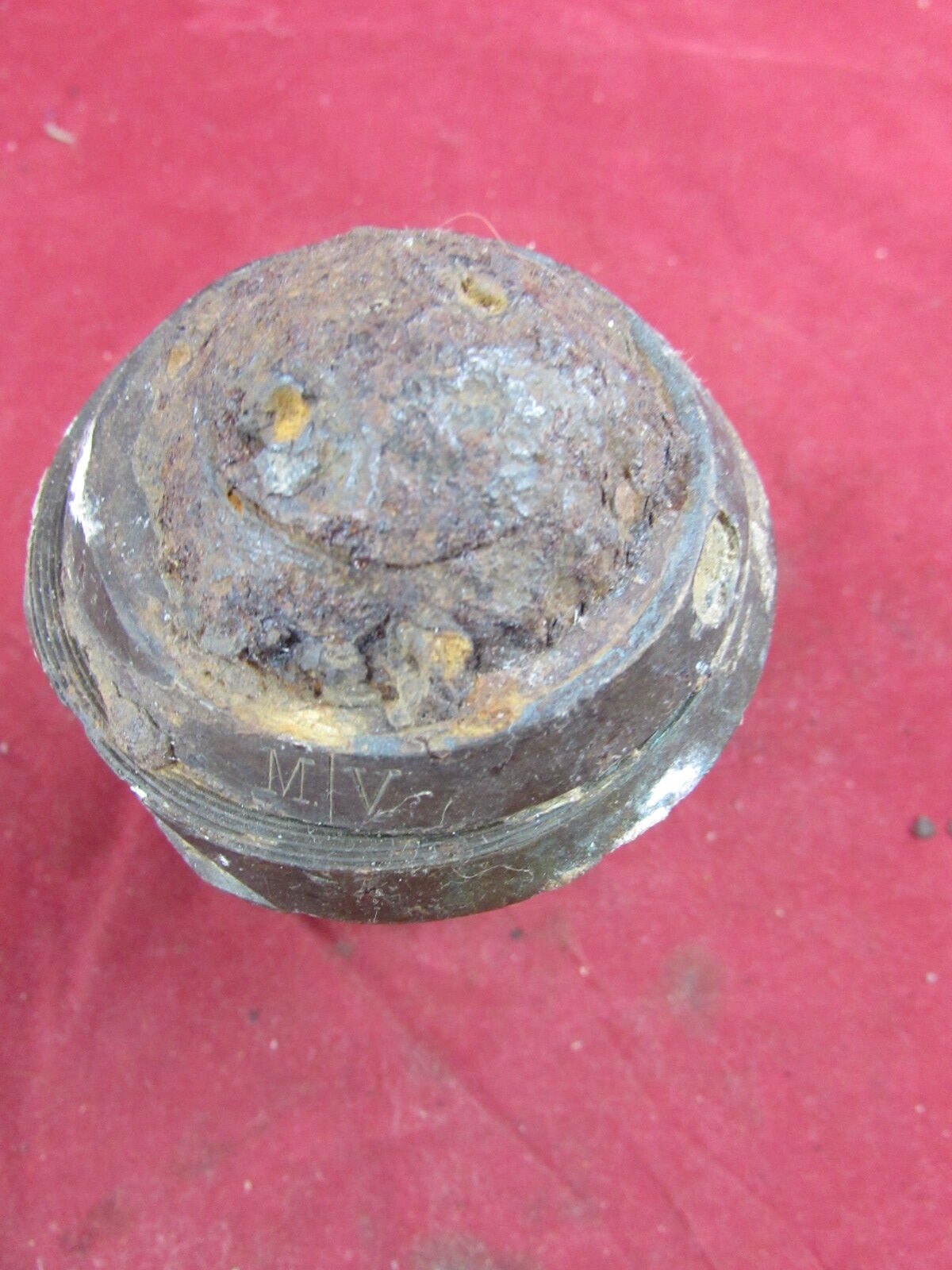

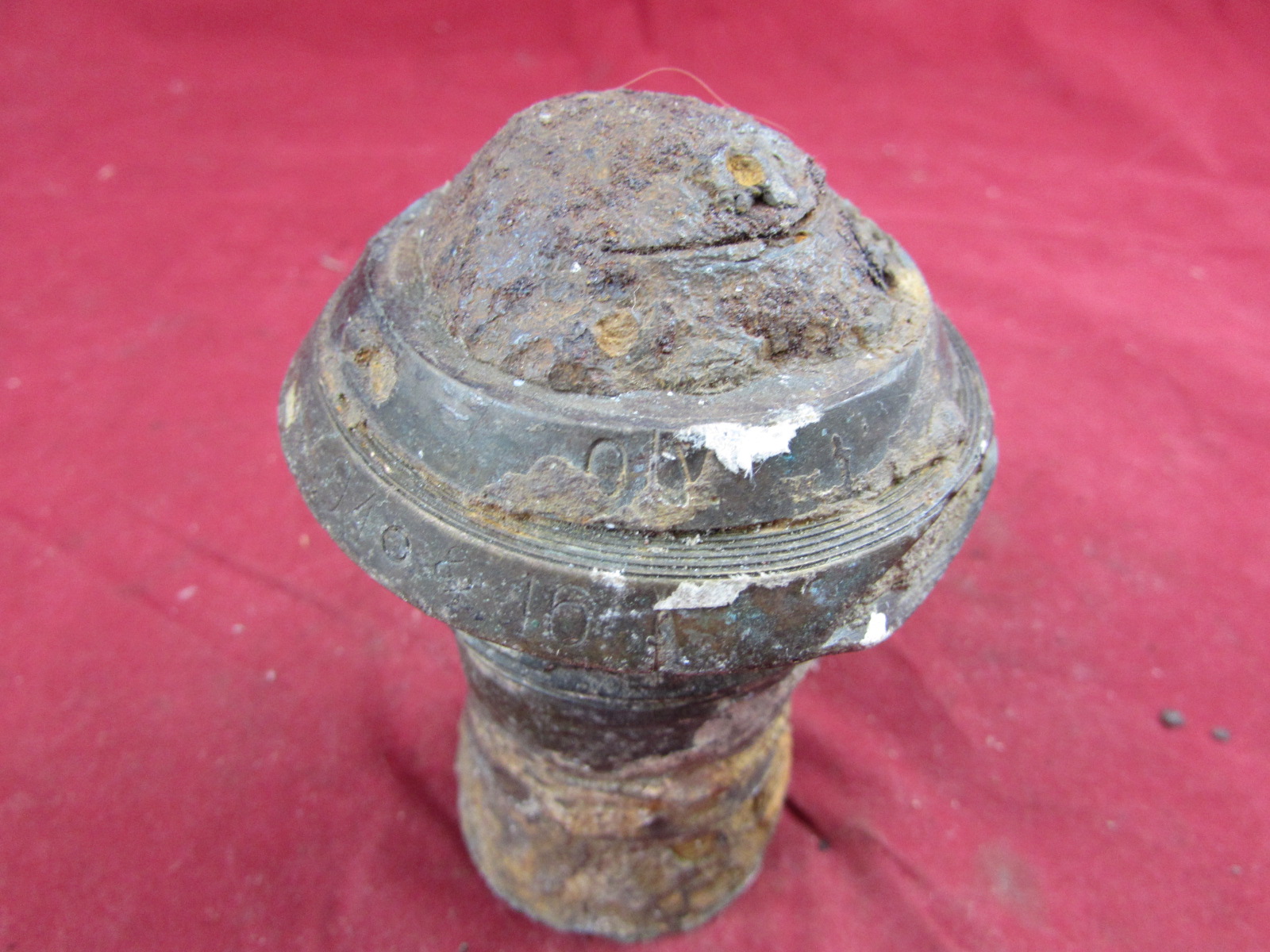

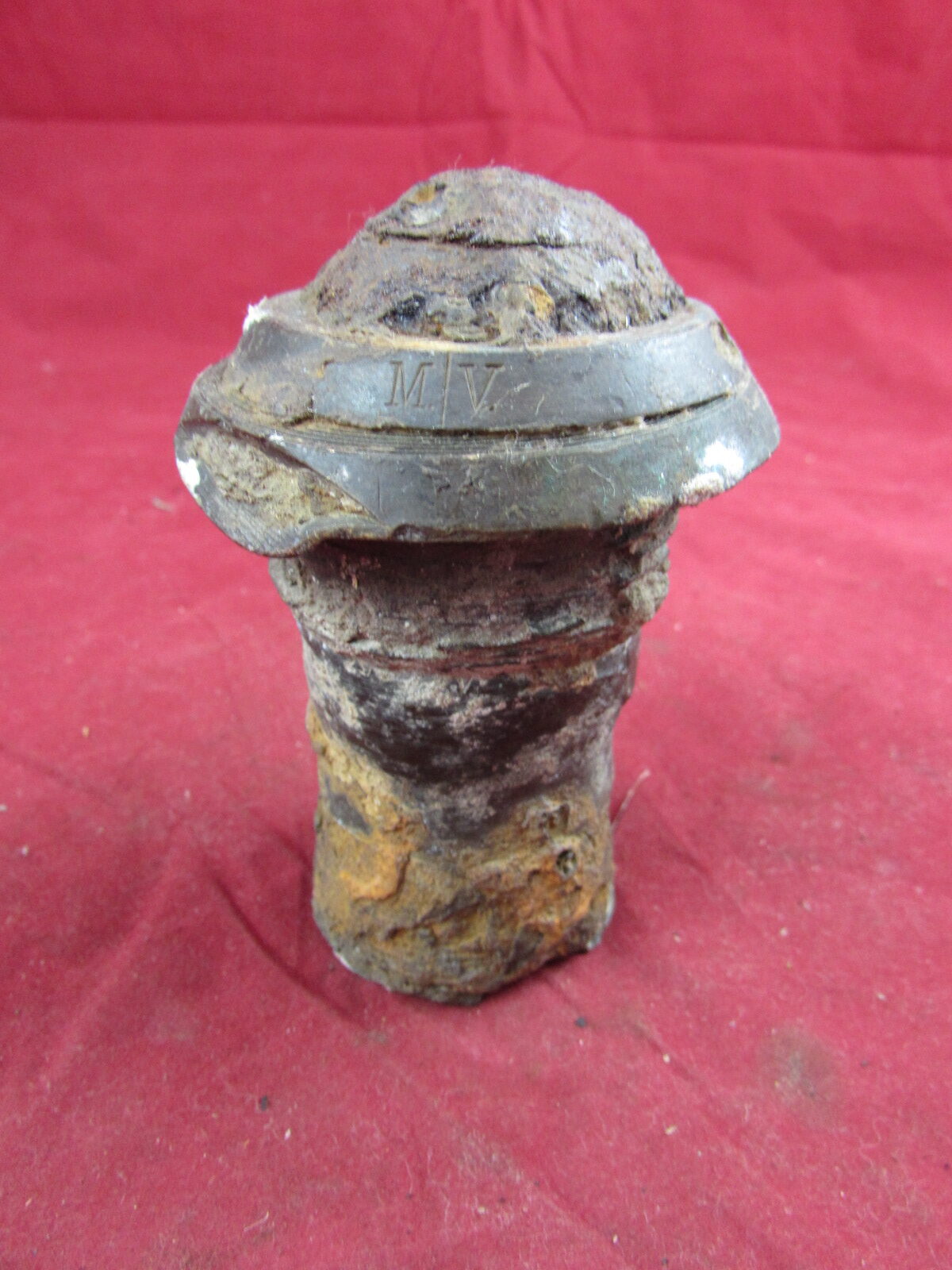

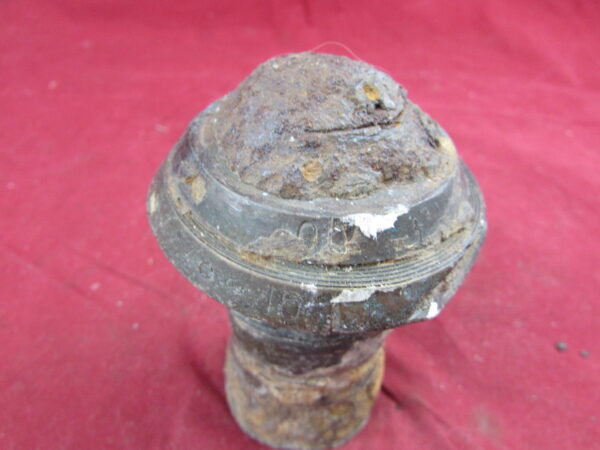

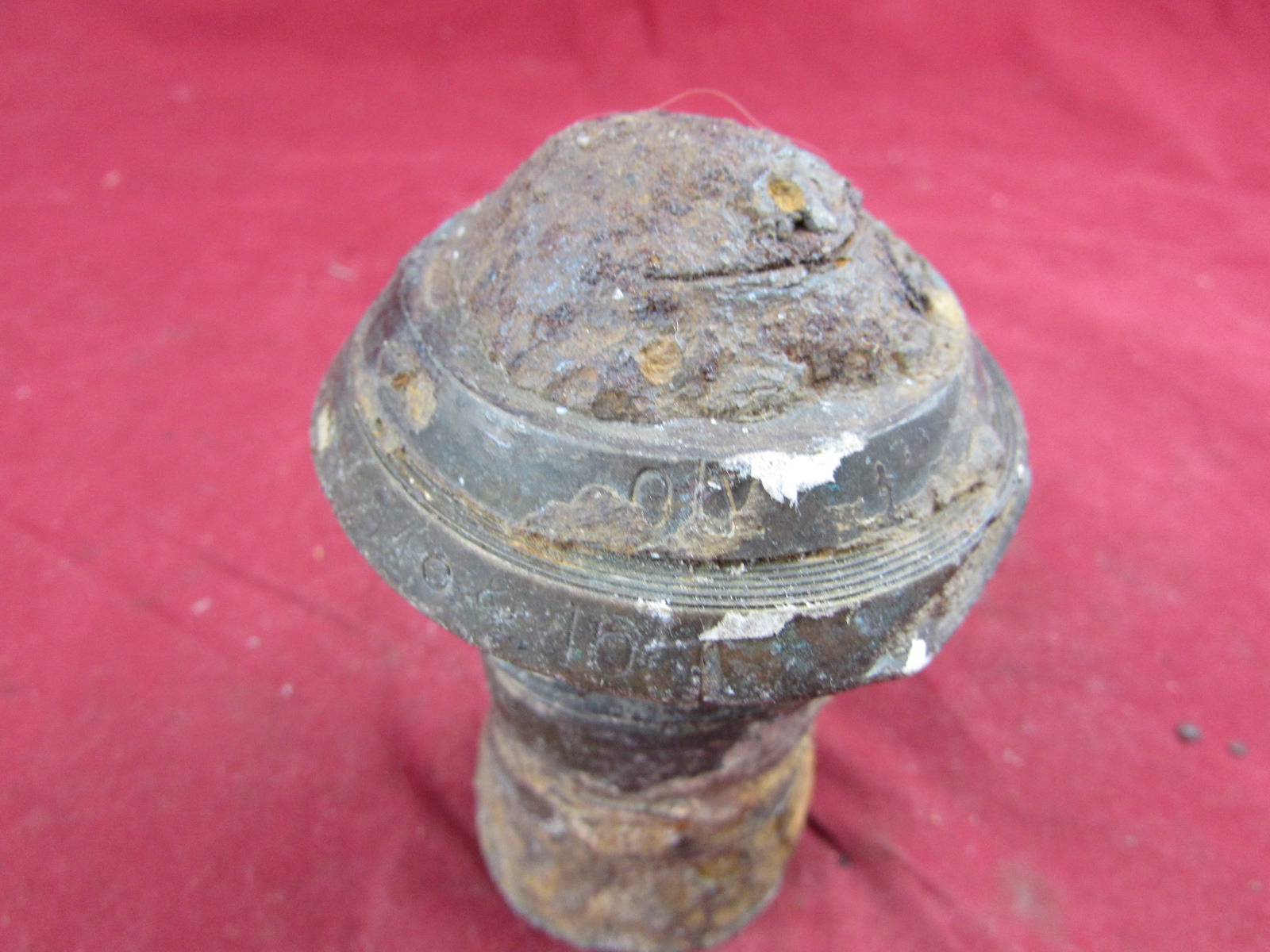

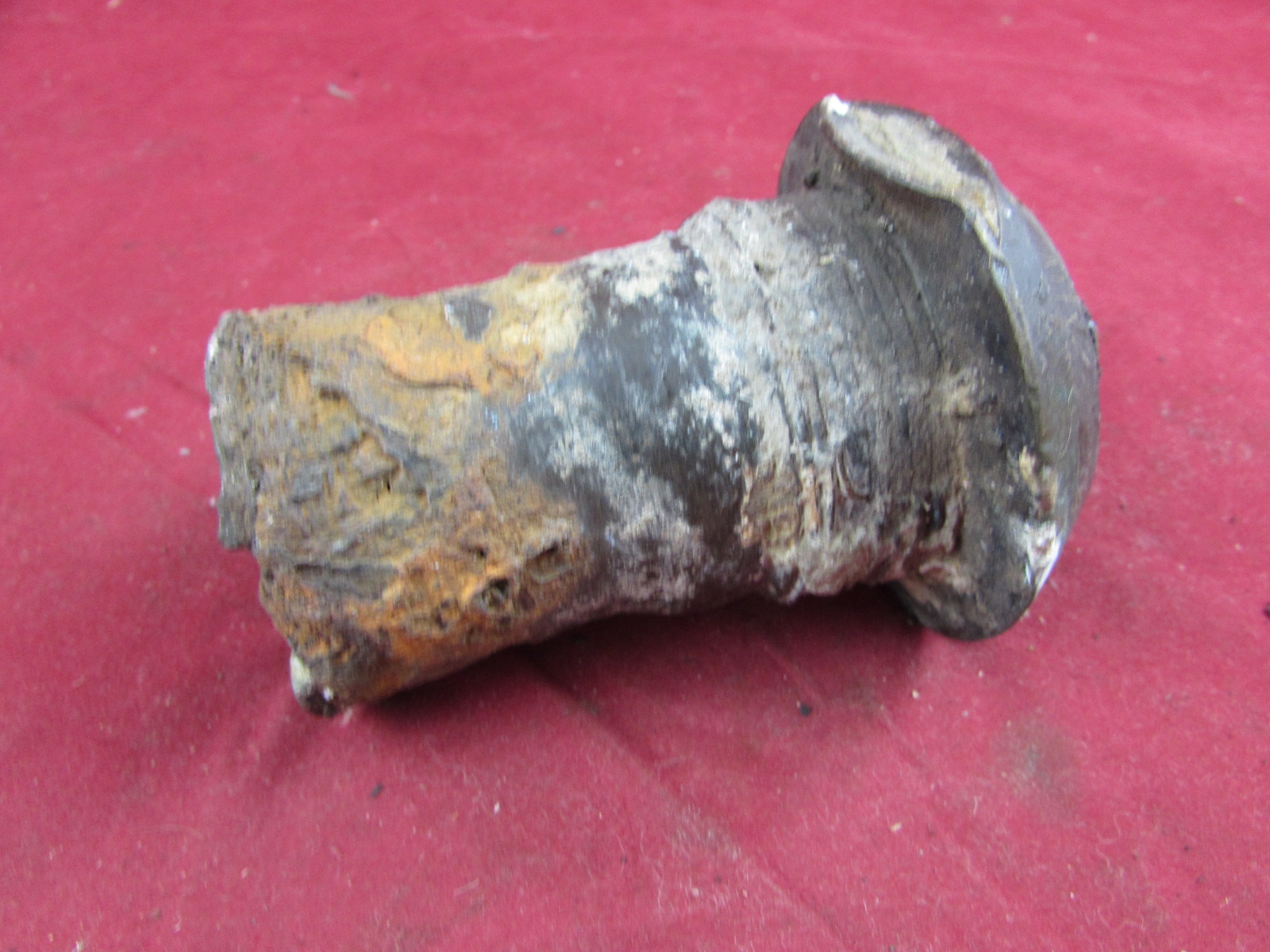

Relic German GrZ 04 Artillery shell fuse 1914 modification 45 mm percussion fuse-detonator without delay dated 1915 used on high explosive shells, recovered on the Ypres Battlefield of 1914-1918 in Belgium

Relic German GrZ 04 Artillery shell fuse 1914 - Image 2

Relic German GrZ 04 Artillery shell fuse 1914 - Image 3

Relic German GrZ 04 Artillery shell fuse 1914

£40.00

Free UK Shipping

Relic German GrZ 04 Artillery shell fuse 1914 modification 45 mm percussion fuse-detonator without delay dated 1915 used on high explosive shells, recovered on the Ypres Battlefield of 1914-1918 in Belgium.

In stock

In stock, ready to be shipped
Free shipping on all orders in the UK
Worldwide shipping available - contact for costs

Accepted Payments

Relic German GrZ 04 Artillery shell fuse 1914

German GrZ 04 Artillery shell fuze 1914 modification 45mm percussion fuze- detonator, double effect with delay or without. for High explosive shells. Recovered from Ypres Battlefield of 1914-1918 in Belgium.


		Brass or zinc alloy fuze, with steel cap and gaine. The GR Z 04 was an evolution of the Gr Z 96/04 fuze, including as this latter : a selectable optional delay (approximately 1 second) based on two identical parallel graze percussion systems designed on a cylindrical graze pellet bearing a starter and a static percussion pin transverse bridge, one directly connected to the detonator, and the other one through a compressed gunpowder pellet delay, a graze arming system based on an axial and massive mobile graze pellet bearing a starter, a percussion pin protected by a tulip spring cap, and two big compressed gunpowder pellets blocking the percussion systems, inspired from the ‘Dopp Z 92’ fuze, and secured by a two rods safety pin, an evolution of the exploder safety masking at rest the primer into an isolated detonation room, but with a static primer and a mobile detonator charge.
